Internal Hex Implant Systems

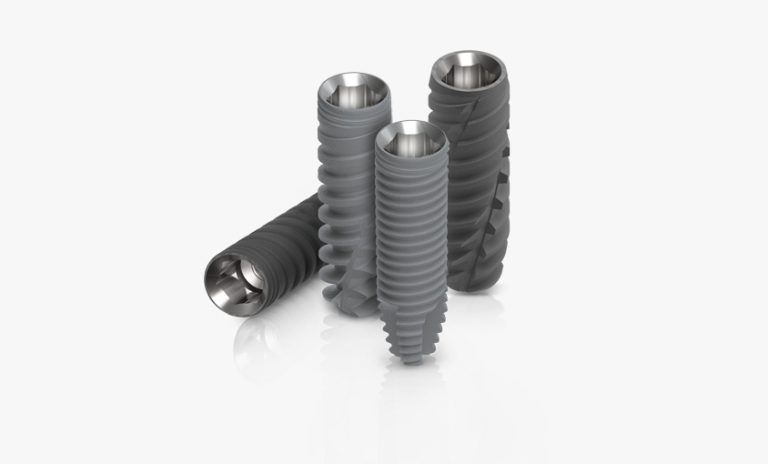

Adin’s Internal Hex implant platform offers three trusted implant designs under one restorative connection, supporting clinical flexibility, simplified workflows, and predictable treatment planning.
Touareg S/OS™
Our most popular implant line, featuring dynamic self-tapping threads and a calcium phosphate grit-blasted surface.
Designed for strong primary stability across a wide range of bone types.
Triple™
A triple spiral thread implant with vertical cutting channels for smooth insertion and balanced force transfer.
Designed to support high initial stability and efficient restoration.
Swell™
A hybrid implant with a parallel body, tapered apex, and V-shaped thread design.
Designed for accurate positioning, balanced load distribution, and use in the mandibular arch.
Internal Hex
Touareg™ S
AB/AE Surface Treatment
Touareg™ S is a tapered spiral implant with an Internal Hex connection, designed for simple and efficient clinical use.
Its spiral tap and bone-condensing design are intended to support high primary stability across a wide range of bone types, including soft bone. The implant also features self-tapping capability and redirecting flexibility, supporting a controlled placement workflow.
With a rounded apex designed to support minimally invasive placement, built-in platform switching, and a single restorative platform, Touareg™ S is designed to simplify both surgical and prosthetic workflows.
| Touareg™ S/OS | L-6.25mm | L-8mm | L-10mm | L-11.5mm | L-13mm | L-16mm | L-18mm |
|---|---|---|---|---|---|---|---|
| 3.5mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 3.75mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 4.2mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6mmD | ✓ | ✓ | ✓ | ✓ | ✓ |

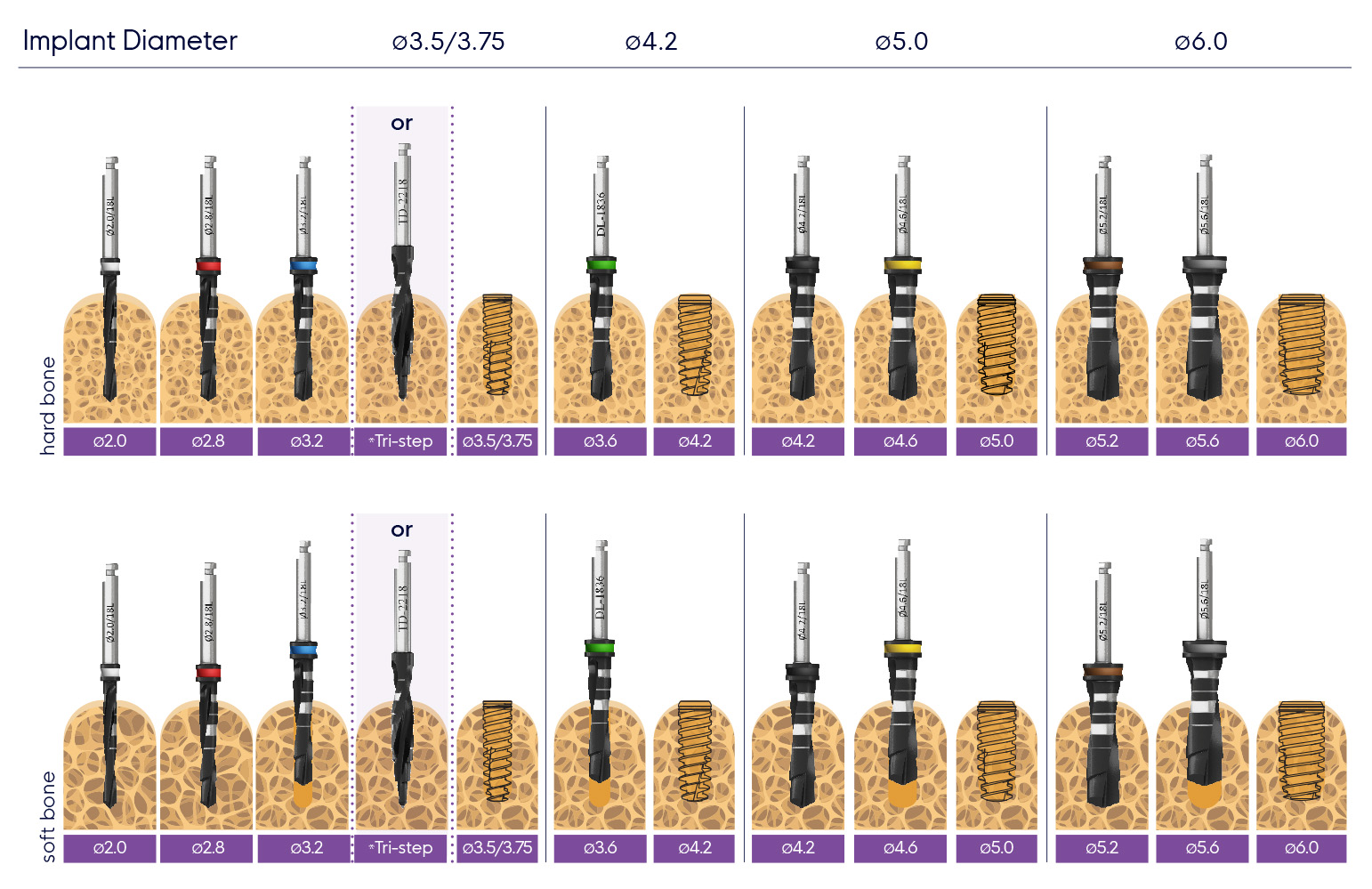

Drilling Protocol
Recommended drilling speed up to 1200 rpm
All measurements are in mm.
*For initial drilling, you may use Tri-step drill instead of ∅2, ∅2.8 and ∅3.2 drills in sequence.
Touareg™ OS
OsseoFix™ Surface Treatment
Touareg™ OS is a tapered spiral implant with an Internal Hex connection, featuring Adin’s OsseoFix™ calcium-phosphate micro-roughened surface treatment.
OsseoFix™ is designed to provide controlled surface roughness and support early bone response, while maintaining the clinical advantages of the Touareg™ implant design.
Its spiral tap and bone-condensing design are intended to support high primary stability across a wide range of bone types, including soft bone. The implant also features self-tapping capability and redirecting flexibility as part of its placement-oriented design.
With built-in platform switching and a single restorative platform, Touareg™ OS is designed to simplify both surgical and prosthetic workflows.
| Touareg™ S/OS | L-6.25mm | L-8mm | L-10mm | L-11.5mm | L-13mm | L-16mm | L-18mm |
|---|---|---|---|---|---|---|---|
| 3.5mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 3.75mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 4.2mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6mmD | ✓ | ✓ | ✓ | ✓ | ✓ | View Internal-Hex Catalog |
Drilling Protocol
Recommended drilling speed up to 1200 rpm
All measurements are in mm.
*For initial drilling, you may use Tri-step drill instead of ∅2, ∅2.8 and ∅3.2 drills in sequence.
Swell™
Straight Implant System
Swell™ is a straight Internal Hex implant with a parallel-walled body, slightly tapered geometry, and V-shaped thread design.
Its implant design is intended to support controlled positioning, balanced load distribution, and esthetic restorative planning. The implant also features self-tapping capability and a double-lead thread design.
With a standard SLA™ – AB/AE, Alumina Oxide Blasted/Acid Etched surface treatment and a single restorative platform, Swell™ is designed to support efficient surgical and prosthetic workflows.
| Swell™ | L-6.20mm | L-6.25mm | L-8mm | L-10mm | L-11.5mm | L-13mm | L-16mm | L-18mm |
|---|---|---|---|---|---|---|---|---|
| 3.3mmD | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| 3.75mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 4.2mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 5mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 6mmD | ✓ | ✓ | ✓ | ✓ | ✓ |

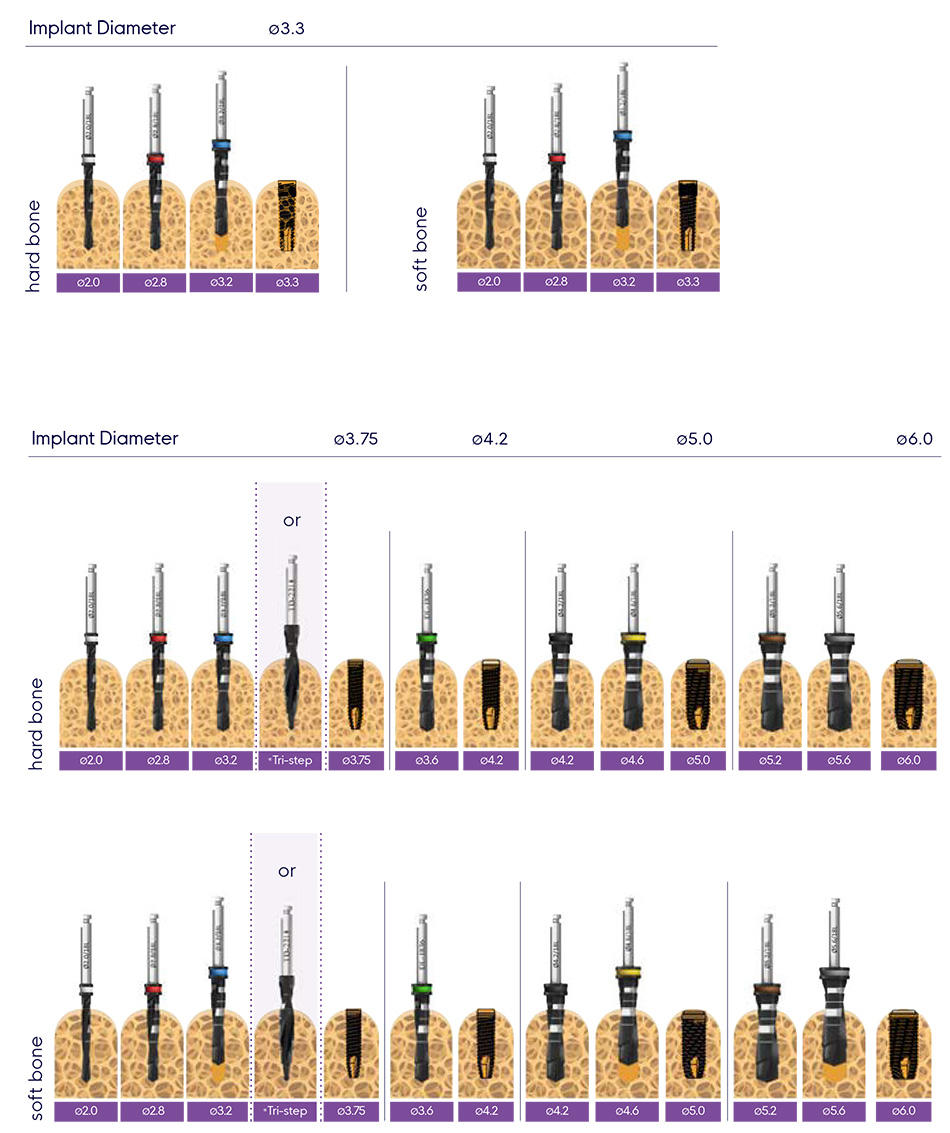

Drilling Protocol
Recommended drilling speed up to 1200 rpm
All measurements are in mm.
*For initial drilling, you may use Tri-step drill instead of ∅2, ∅2.8 and ∅3.2 drills in sequence.
Triple™
Insertion Speed
Triple™ is an Internal Hex implant featuring a triple spiral trapezoid thread design and vertical cutting channels along the implant body.
Its three-start external thread design is intended to support efficient insertion, while the vertical channels contribute to balanced force distribution during placement.
The implant is designed for streamlined installation and restoration, with high initial stability as part of its clinical design.
With a single restorative platform, Triple™ is designed to support efficient surgical and prosthetic workflows.
| Triple™ | L-6.25mm | L-8mm | L-10mm | L-11.5mm | L-13mm | L-16mm | L-18mm |
|---|---|---|---|---|---|---|---|
| 3.5mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 3.75mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 4.2mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5mmD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 6mmD | ✓ | ✓ | ✓ | ✓ | ✓ |
Drilling Protocol
Recommended drilling speed up to 1200 rpm
All measurements are in mm.
*For initial drilling, you may use Tri-step drill instead of ∅2, ∅2.8 and ∅3.2 drills in sequence.
Impression
Our components for taking impressions for all restoration types can be successfully utilized for digital or conventional protocols either implant-level or abutment level procedures. Our broad range of solutions and flexible designs enable easy and accurate restorative planning, whether you’re dealing with a single tooth, multiple teeth, bridge or full mouth rehabilitation.
Restoration
Our TMA™ (Trans Mucosal Abutment) system is indicated for multiple-unit, screw-retained restorations and may be used in combination with an implant level framework design. The TMA™ system is used to elevate the restorative seating platform when restoration at implant level is not indicated or practical due to the depth or angle of the implant. The TMA™ System is designed to allow better prosthetics access when using implants with divergent angles accommodate full and partial edentulous arches, especially when using angled implants and all-on-x technique for full arch restoration. The TMA™ abutment system is available in straight or angled (17°,30°,45°), engaging the Internal Hex for indexing, with a selection of collar heights. Abutments are delivered with handles for easy insertion and to assist with seating.
Tools & Kits
Successful surgical procedures start with having the right instruments and tools to ensure your desired treatment outcomes are met. That’s why our range has everything you need, including drills, keys, ratchets and insertion tools. Not only do they make procedures safer and simpler, they result in an enhanced patient experience as well. Our Surgical Kits streamline and simplify your implant procedures.
